AISI 420C Stainless Steel Balls
- Material: AISI 420C
- Diameter: 0.5mm-300.00mm;
- Precision Grade:G20,G40,G80,G100,G200, G500, G1000,
- Hardness:HRC52-60

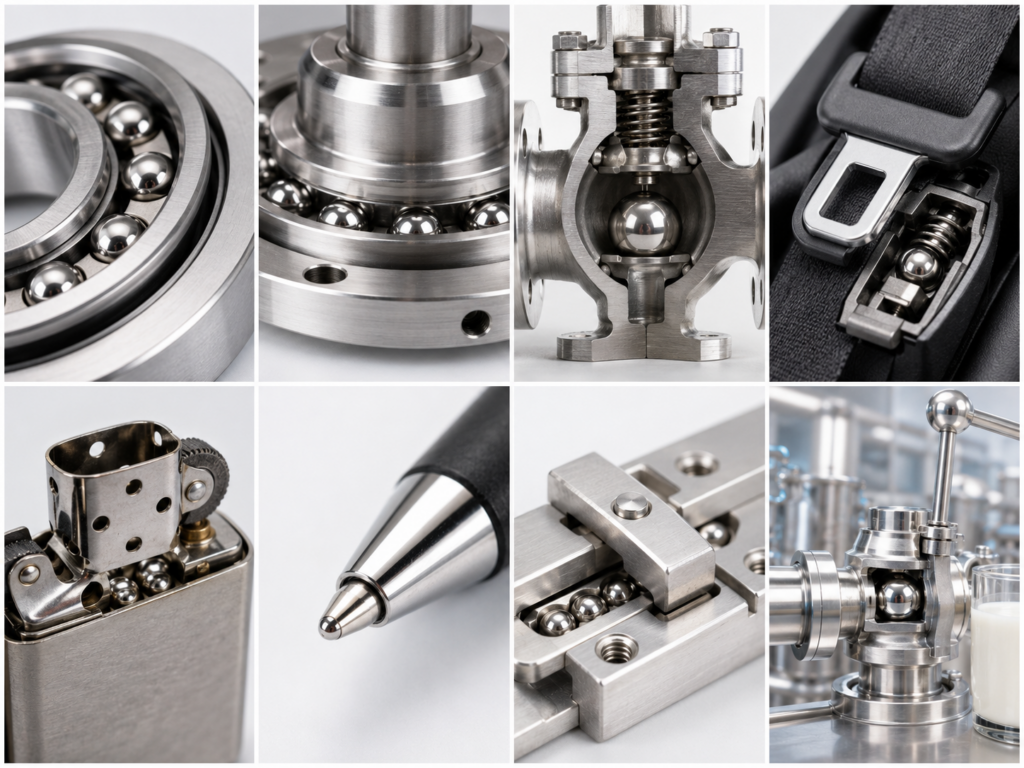

- Application: Special bearings, automotive seatbelts & components, pumps, lighters, and ballpoint pens.
- Corrosion Resistance: Excellent corrosion resistance in industrial atmospheres, fresh water, steam, organic compounds, dairy products, and mild acidic environments. Good in food, alkaline solutions, and salt atmospheres. But it does not resist contact with seawater and strong acids.
| Physical Property | |
|---|---|
| Corrosion Resistant | Fair |
| Wear Resistant | Good |
| Magnetism | Yes |
| Technical Data | |
|---|---|
| Hardness | HRC 52 – 60 |
| Density | 7.75g/m3 |
| Young’s Modulus | 205GPa |
| Tensile Strength | 1700-1900MPa |
| Chemical Composition | |||||||
|---|---|---|---|---|---|---|---|
| Type | %C | %Si | %Mn | %P | %S | %Cr | %Mo |
| 420C | 0.43-0.50 | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 12.50-14.50 | |
| International Standard | |||||||
|---|---|---|---|---|---|---|---|
| USA | CHN | GER | FRA | ITA | UK | RUS | JAP |
| 420C | 4Cr13 | 1.4034 | Z 34 C 14 | X46Cr13 | – | 40 Kh 13 | – |
