AISI 1010/1015 Low carbon steel balls
Case-hardened ball
- Material: AISI 1010-1015

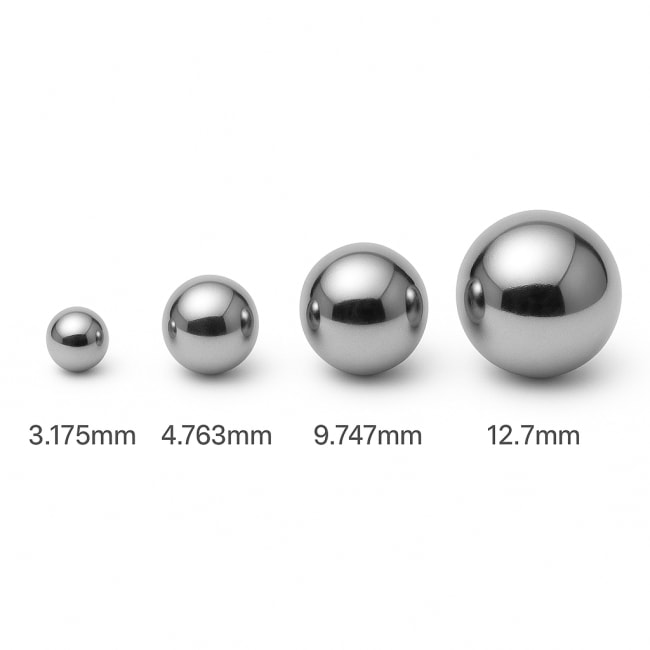

- Diameter: 0.5mm-50.8mm;
- Precision Grade: G80,G100,H200, G500, G1000,G2000
- Hardness: HRC55-65

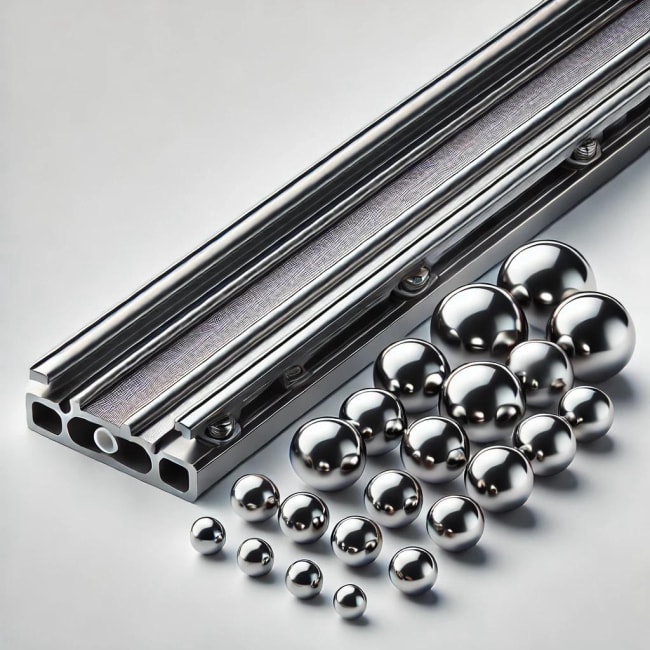

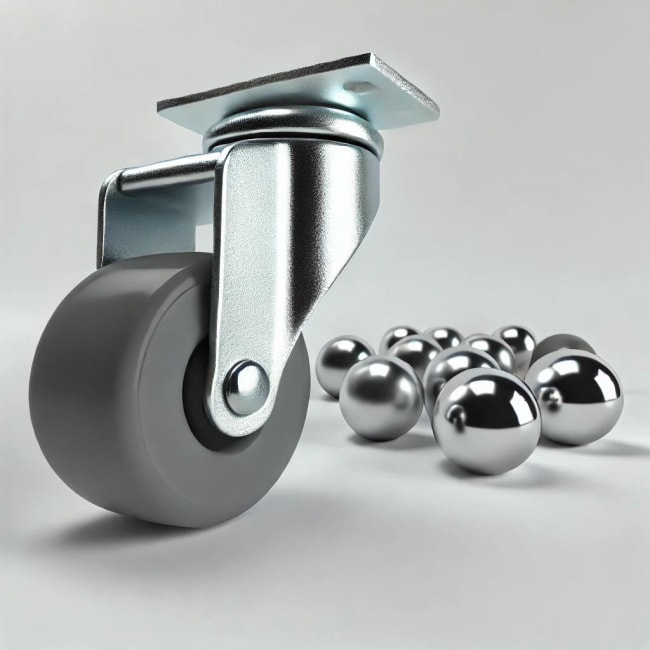

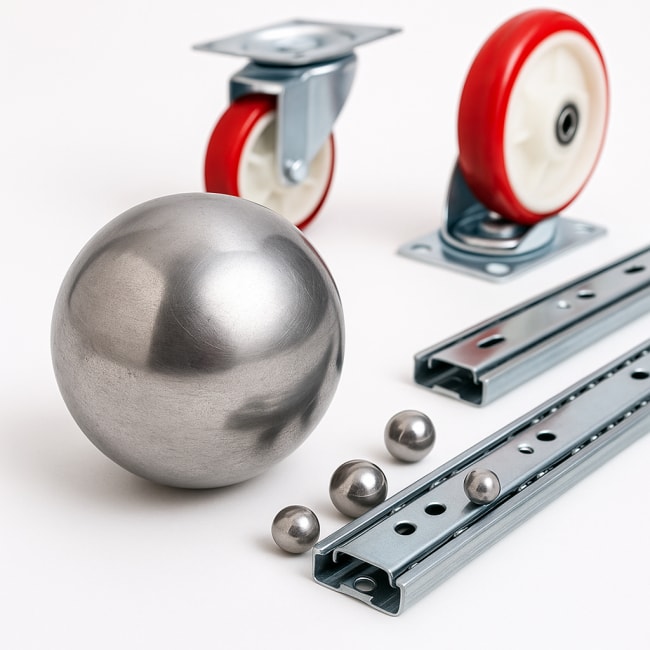

- Application: Automotive application, semi-precision rolling bearing, Furniture rails and caster, drawers slider, locks, oilers
and greasers, skates, bicycle, belt and roller conveyors, hardware unit, polish finishing media, etc.
| Physical Property | |
|---|---|
| Corrosion Resistant | No |
| Wear Resistant | Good |
| Magnetism | Yes |
| Technical Data | |
|---|---|
| Hardness | HRC 55 – 65 |
| Density | 7.82g/m3 |
| Young’s Modulus | 200GPa |
| Tensile Strength | 300-400MPa |
| Chemical Composition | |||||
|---|---|---|---|---|---|
| Type | %C | %Si | %Mn | %P | %S |
| 1010 | 0.08 – 0.13 | 0.10 – 0.35 | 0.30 – 0.60 | 0.040 Max | 0.050 Max |
| 1015 | 0.12 – 0.18 | 0.10 – 0.35 | 0.30 – 0.60 | 0.040 Max | 0.050 Max |
| International Standard | |||||||
|---|---|---|---|---|---|---|---|
| USA | CHN | GER | FRA | UK | ITA | RUS | JPN |
| 1010 | 10 | 1.1121 | CC10 | 040A10 | C10 | 10 | S10C |
| 1015 | 15 | 1.1141 | XC12 | 080M15 | C15 | 15 | S15C |
| Cash Depth | |||
|---|---|---|---|
| Ball Diameter | Min. Case Depth | Ball Diameter | Min. Case Depth |
| 2.0-3.0mm | 0.5mm | 9.5-11.0mm | 1.4mm |
| 3.1-4.5mm | 0.6mm | 11.1-12.5mm | 1.7mm |
| 4.6-5.5mm | 0.8mm | 12.6-14.0mm | 1.8mm |
| 5.6-6.5mm | 0.9mm | 14.1-19.0mm | 1.9mm |
| 6.6-9.5mm | 1.1mm | 19.1-38.0mm | 2.0mm |
