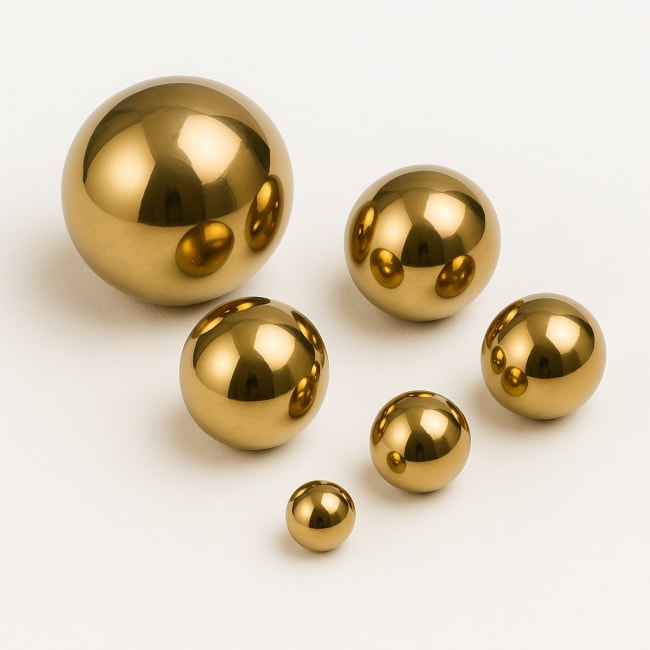

Aluminium Bronze Balls

Aluminium Bronze Balls

Bronze Alloy have excellent mechanical properties and hardness.

The condition of the delivered balls is passivated.

Corrosion Resistance: Excellent in seawater conditions, good in hot, concentrated caustic solutions and salt solutions. Balls resist in acetic acid, dry ammonia, sodium carbonate, phosphates, bromide, and chloride solutions.

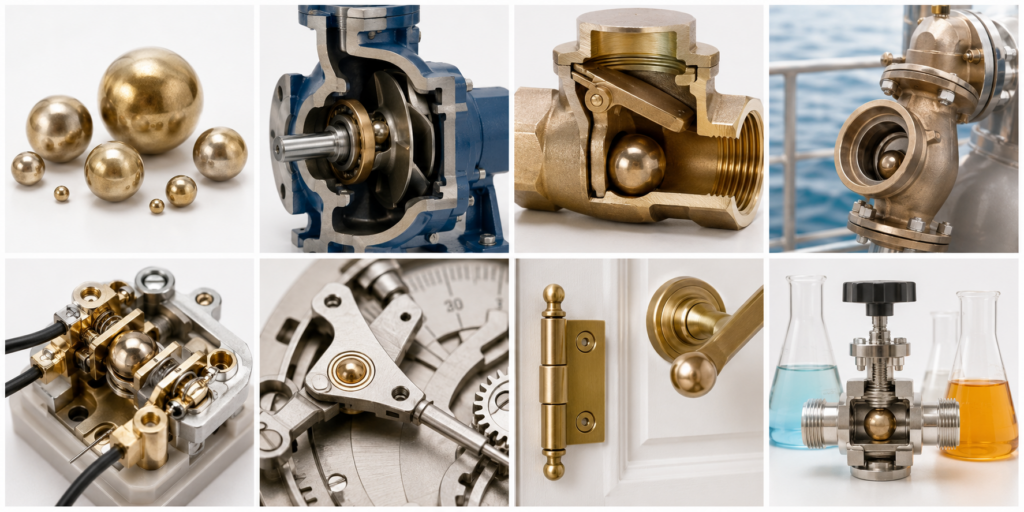

Applications: Include the electronic sector, aesthetic applications, and special pumps and valves.

Specification
Material  Aluminium copper and other alloying agents
Diameter 1.5mm -150.0mm
Precision Grade G100-G1000
Technical Data
Hardness (Shore D)  HRC 27-32
Density 7.660g/m3
Young’s Modulus  119GPa
Tensile Strength  600-700MPa
Chemical Coposition
%Si %Ni %Cu %Al %Zn %Pb %Fe
0.10 max. 0.50 max. balance 6.00 – 8.50 0.20 max. 0.02 max. 0.50 max.
International Standard
USA CHN GER FRA UK ITA RUS JAP
C61000 QAl7 2.0920 CuAl8 CA102 CuAl8 Br7 CuAl8
