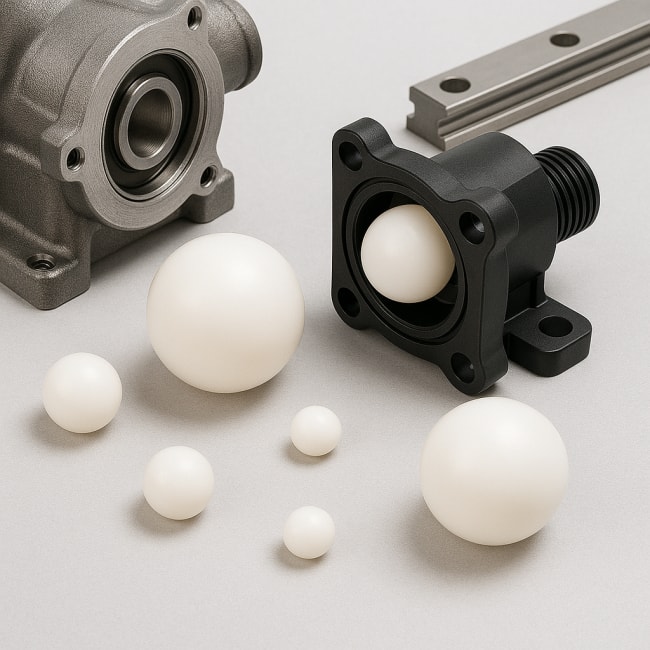

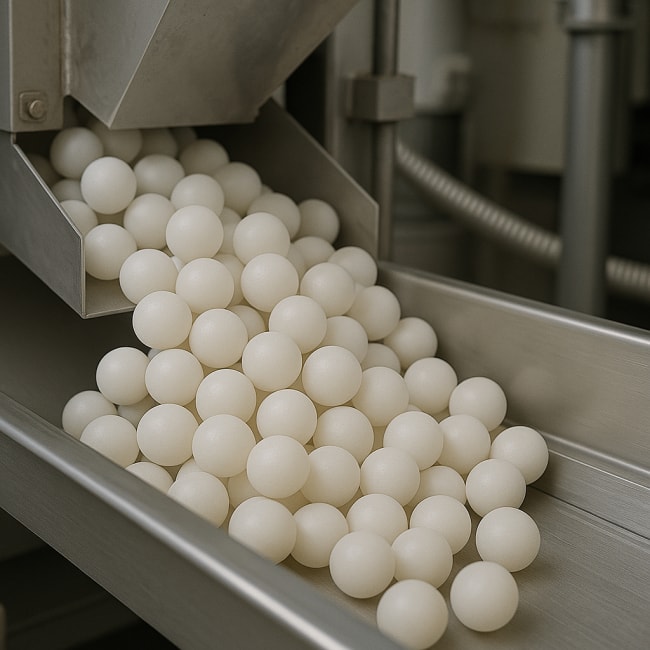

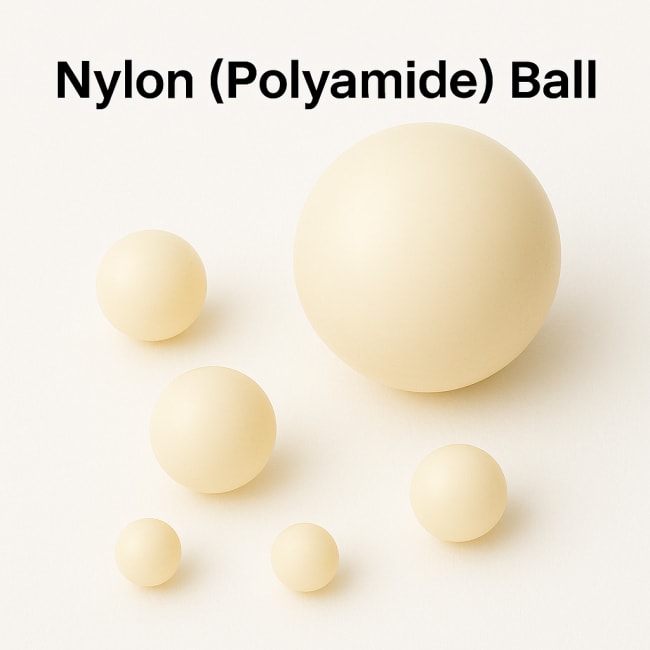

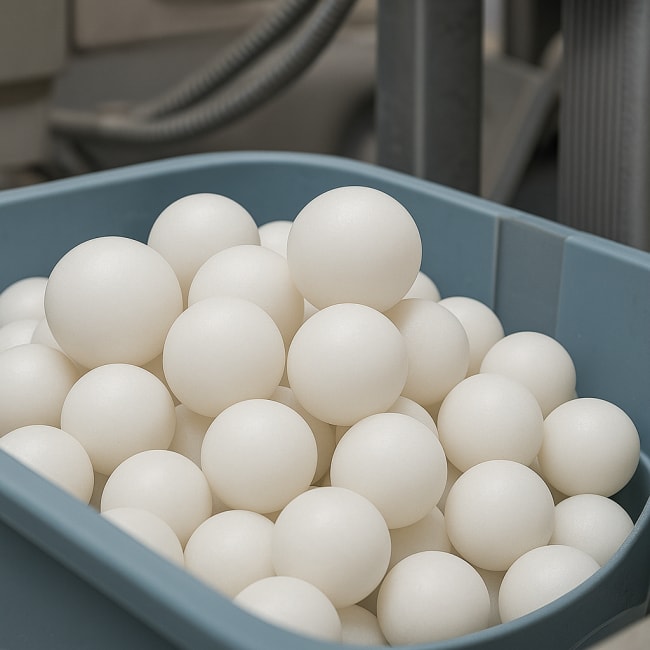

Nylon, Polyamide Balls
Nylon Balls 6/6.6 offer strong corrosion and wear resistance while being lightweight. In general solvents, alkalis, weak mineral acids, and the majority of organic acids, nylon spheres are insoluble. Smooth surfaces are used on nylon balls to lessen friction-related wear.
| Specification | |
|---|---|
| Commercial name | Nylon 6 / Nylon 6.6 |
| Diameter | 1.5mm – 160mm |
| Precision Grade | I – II – III |
| Mechanical Data | |
|---|---|
| Hardness (Shore D) | 75-85 |
| Density | 1.12g/m3 |
| Young’s Modulus | 2670GPa |
| Tensile Strength | 86-103MPa |
| Service temperature[ºC] | -30/80 |
Corrosion Resistance：They are effective even in high temperature applications and are automotive lubricants with strong ductility, toughness, abrasion resistance, and electrical insulating qualities. They are not able to withstand strong alkalis and acids.

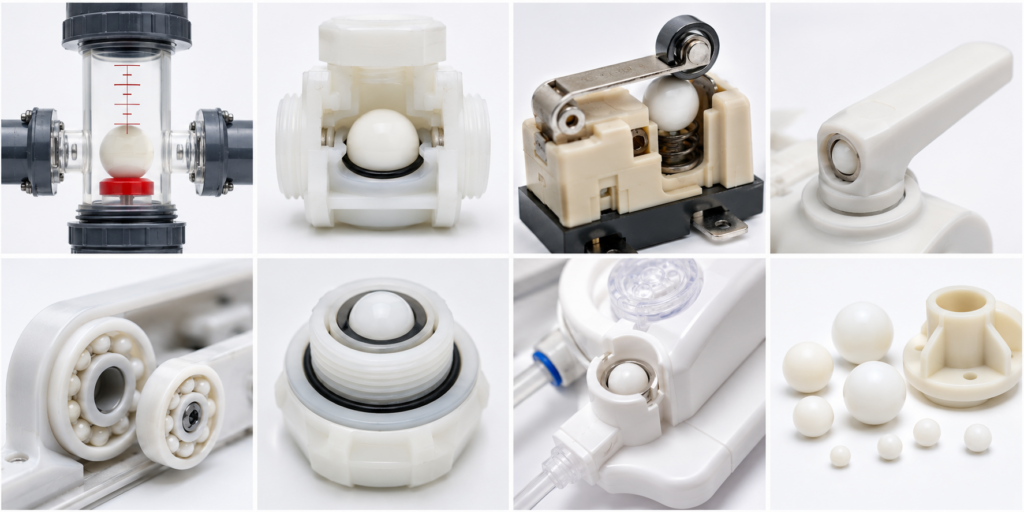

Application: Nylon balls are utilized in industrial and medical applications, flowmeters, switches, handles, special valves, bearing and sealing applications, and low load bearings.
