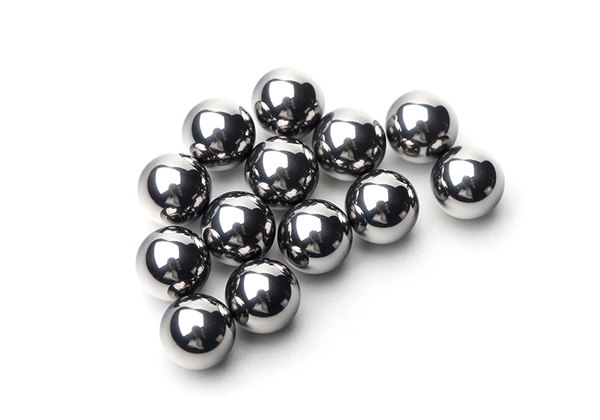

Tungsten Carbide Balls

Tungsten Carbide Balls

Tungsten Carbide is made from a combination of tungsten and carbon. Cobalt and nickel may be added as a binder to enhance the balls’ performance.

Corrosion Resistance: It is used where high compressive strength, hardness, and resistance to wear are requested. It also has a high resistance to shocks and impacts.

It resists deformation well, has good impact resistance, and can quickly handle extremely low and high temperatures. These properties make tungsten carbide ball products a popular option for situations where traditional steel has failed.

Applications: Typical applications include bearings, valves, flow meters, ball screws, and pens.

Specification
Material   A combination of tungsten and carbon
Diameter 1.0mm – 120.0mm
Precision Grade G10-G100
Technical Data
Hardness (Shore D) HRA 84-95
Density 14.6 – 14.95g/cm3
Young’s Modulus  650 Gpa
Tensile Strength  4600-4900 Mpa
